The Layout designer

Previous pageReturn to chapter overviewNext page

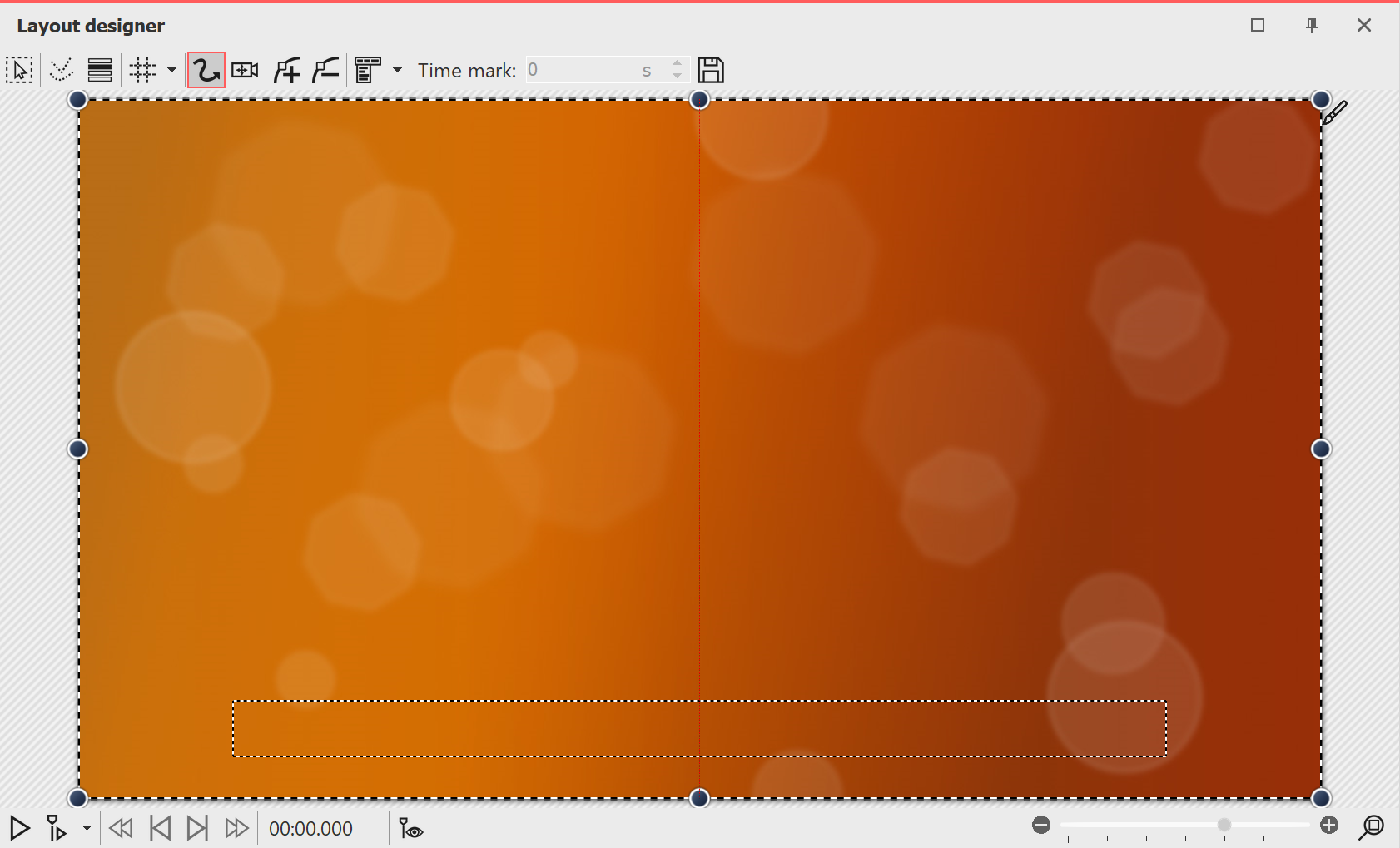

In the Layout designer you can see the preview of your presentation. Here you can see how images and texts will be rendered on the screen. The Layout designer is your workspace for placing objects. Move images, videos, text, and more where you want them, and use the handles on the objects to zoom in or out. In the Layout designer, you also set the flow of Motion paths and Camera pans.

Layout designer

Preview in Layout designer

The following icons are available for viewing in the Layout Designer:

LABr_SelectionFrame

Selection frames can be dragged across the entire Layout designer area to select multiple objects.

LABr_Multiselect

Displays paths and path points of all selected objects.

LABr_Conceal

Displays objects that would obscure the selected one.

LABr_Raster

Selection of the grid to which the images and objects can be aligned.

At the bottom of the Layout designer you will find buttons to control the playback behavior.

LABBr

LABBr_Play

Plays the presentation from beginning to end.

LABBr_PlayFromHere

Plays the presentation from the point where the Playhead is located or from the marked object (switchable).

LABBr_LiveView

Activates the Live preview in the Layout designer.

LABBr_LiveView_Path

 STAGES  Preview the motion path directly in the Layout designer and edit the motion path as it runs.

LABr_ZoomToOrigin

Restores the normal view/default zoom in the Layout designer window. The slider to the left of it zooms in and out of the Layout designer view.

When you play the presentation in the Layout designer, the bar changes.

LABBr_Playing

LABBr_Pause

Pauses the playback.

LABBr_Stop

Ends the playback.

LABBr_JumpToPreviousObject

Jumps to the previous image when Player is paused.

LABBr_Jump_Next_Frame

Jumps to the next frame.

Areas in the Layout designer

Areas in the Layout designer

Areas in the Layout designer

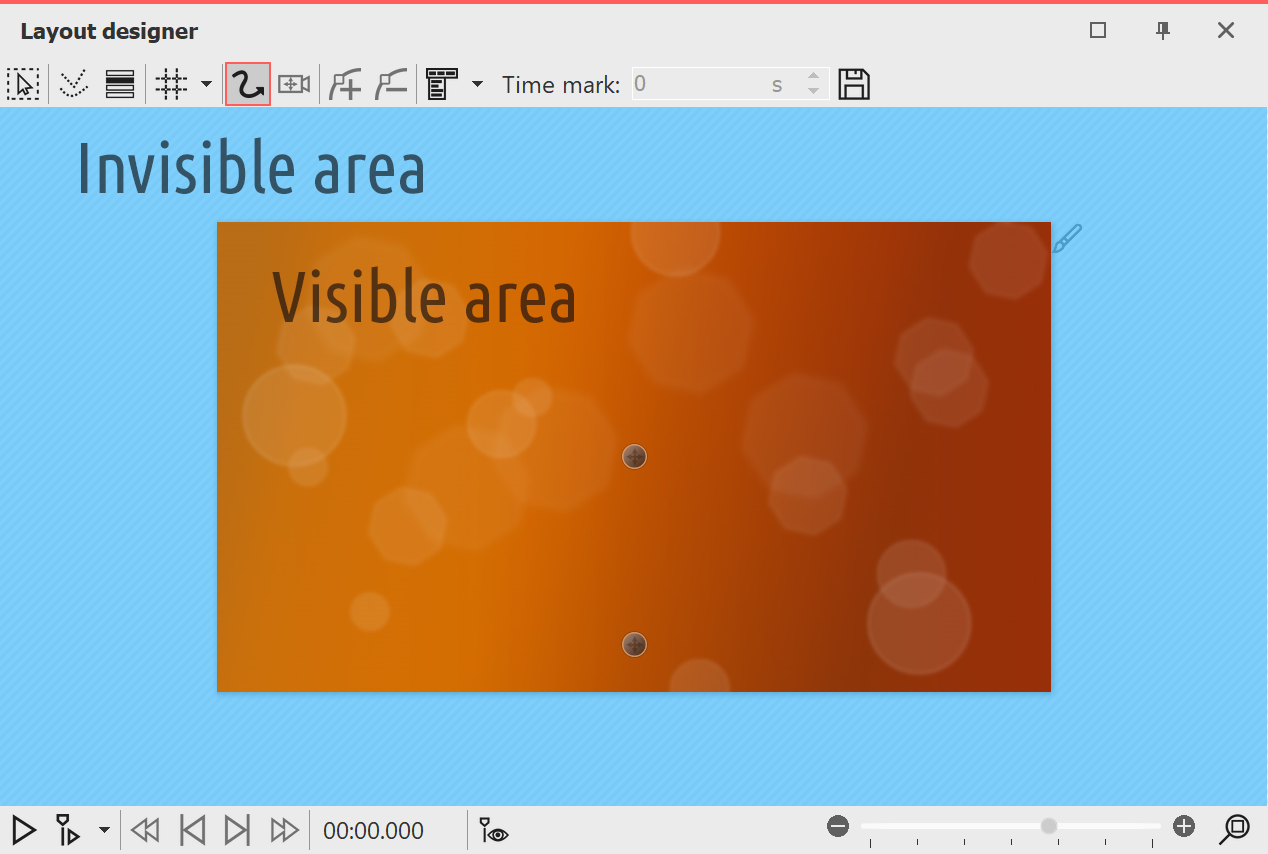

There are two areas in the Layout designer. The visible area contains all the elements that will later be visible when the presentation is played. The elements placed in the non-visible area are not visible when the presentation is played. The non-visible area can be used to  lead motion paths beyond the edge of the image. This way, you can have elements of your project fly in or out of the visible area. Movements can therefore already take place outside the visible area and then merge into the visible area. For example, you can have images and text move across the screen from left to right.

Use the slider at the bottom right of the Layout designer to zoom in and out of the visible area.

Grid in the Layout designer

In the Layout designer you can show a grid. There are several options for this:

Grid options

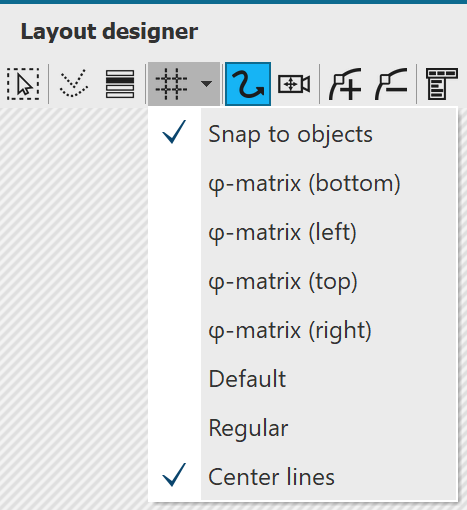

Grid options (Stages)

Grid options

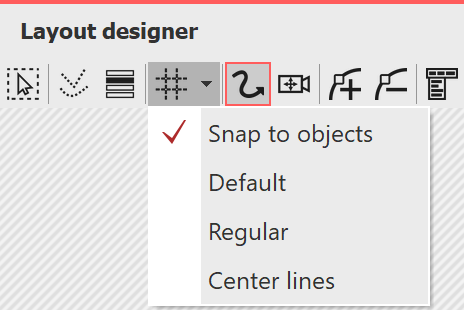

Grid options (SlideShow)

Snap to objects

Objects, such as images or text, orient themselves to the objects available in the Layout designer and snap to them.

Default

The grid is divided to match the aspect ratio.

Regelmäßig

The boxes of the grid have the same height and width.

Center lines

A horizontal and a vertical center line are displayed.

Phi-Matrix

Displays lines for the golden section.

All grids can be combined with each other. To do this, select the various grid options. A check mark will then appear in front of each active option. With another click you can deactivate the option again.

Control of the view in the Layout designer

You can reduce and enlarge the view in the Layout designer with the -/+ slider, but also with the combination of the  Ctrl  key and turning the mouse wheel. Furthermore, when you move the mouse over the Layout designer, a horizontal and vertical scroll bar appears at the bottom and right, respectively.
