Image effects

Previous pageReturn to chapter overviewNext page

With AquaSoft Vision and Stages you can apply image effects like frames, color filters or masks to your images. You can find the image effects in the Toolbox under the Image effects tab.

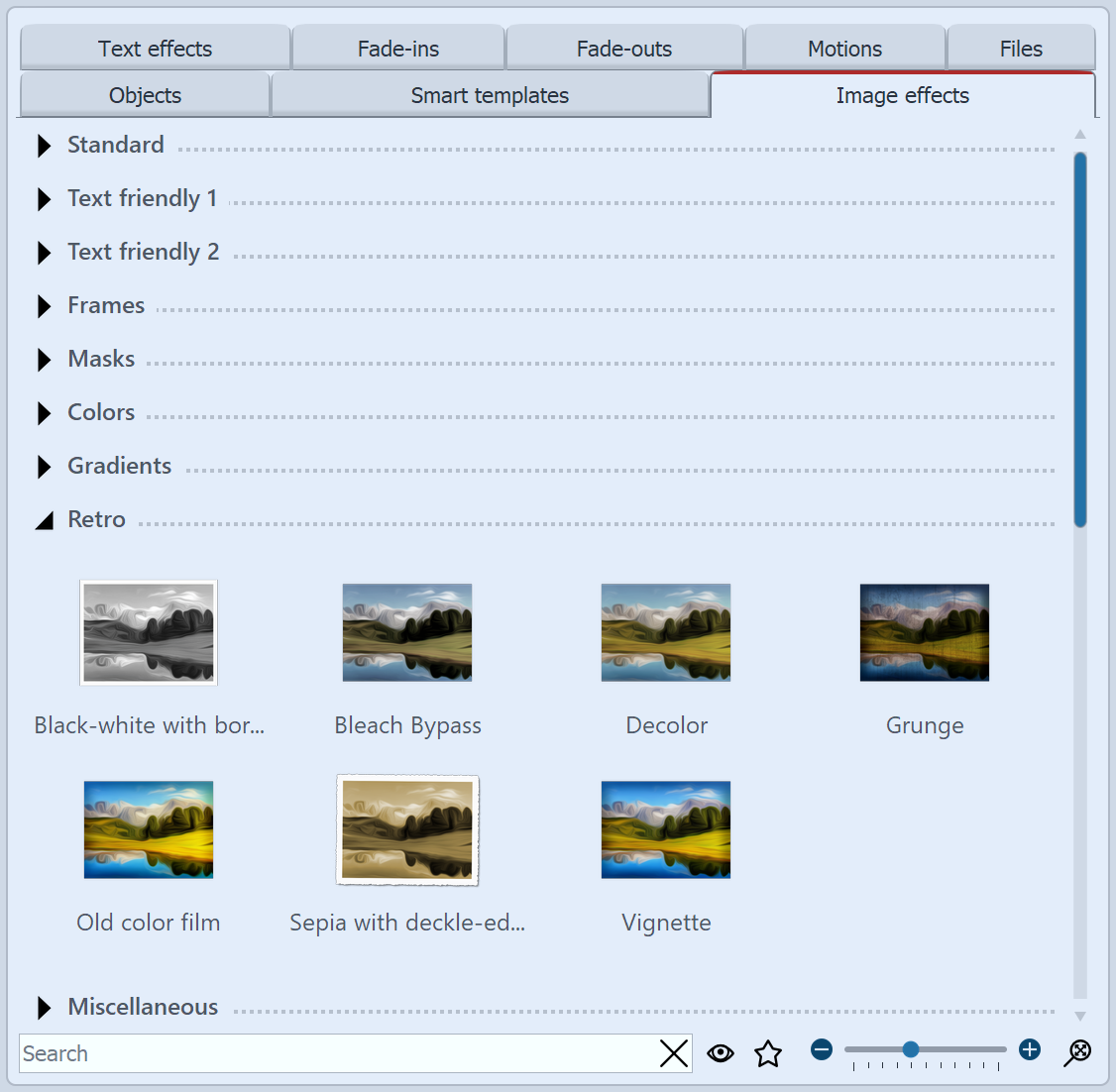

1 Image effects in the Toolbox

Image effects in the Toolbox

Image effects in the Toolbox

The image effects are divided into several categories:

Standard

Text-friendly 1 (can be applied to text objects, image captions and images)

Text-friendly 2 (can be applied to text objects, image captions and images)

Frames

Masks

Colors

Gradients

Retro

Miscellaneous

Custom image effects

With the arrow icon located in front of the category names you can open and close the individual categories.

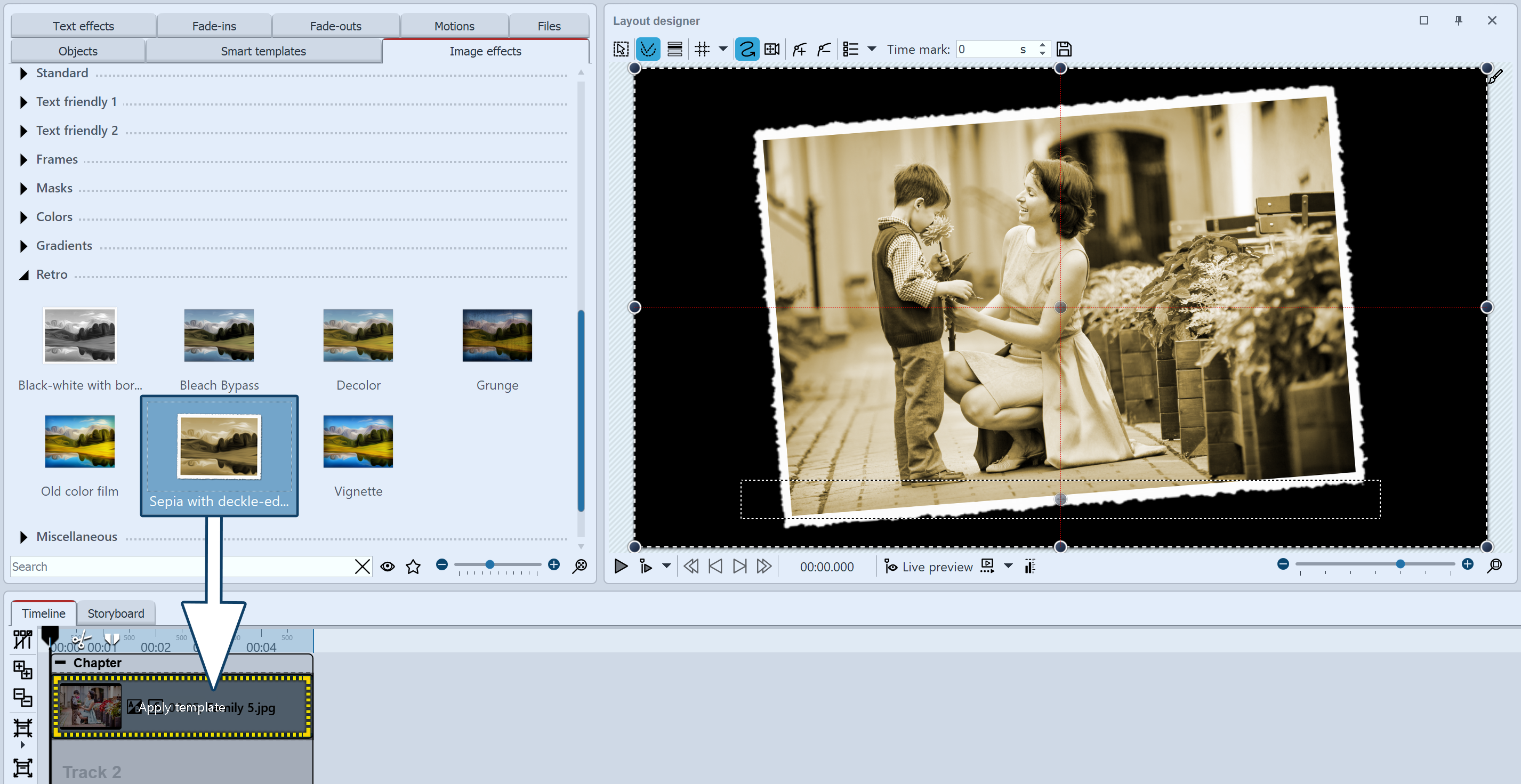

2 Apply image effects in Layout designer or Timeline

Drag the image effect from the Toolbox to the small preview image in the Timeline or to the image in the Layout designer.

Adding image effects from the Toolbox to the Timeline

Adding image effects from the Toolbox to the Timeline

3 Apply image effect via context menu

If you want to apply an image effect from the Toolbox to several or all images in the Timeline, first select the corresponding images:

All images:  Ctrl  +  a

Specific images:  Ctrl  +  mouse click  on the image

Select "Apply

Select "Apply

Now right-click the image effect in the Toolbox to bring up the context menu. Select Apply. The selected image effect then applies to all selected images.

4 Remove image effect

Bildeffekt entfernenIf you want to remove an image effect from an image, you will find the Remove image effect object in the Standard category of the image effects.
Drag it from Toolbox onto the image in Timeline where you want to remove the image effect.

symbol-info

In AquaSoft Video Vision and Stages you can create your own image effects. For this purpose there is the effect editor. In the chapter "Functions in the Image editor" you will learn about the effect editor.
