Color curve adjustment

Previous pageReturn to chapter overviewNext page
Tonal correction

Color curve adjustment

You can find the Color curve adjustment in the Toolbox below the Objects tab in the section Live effects.

With this effect you adjust the black and white point and, as a result, the contrast and the brightness of an object.

1 Insert the "Color curve adjustment"

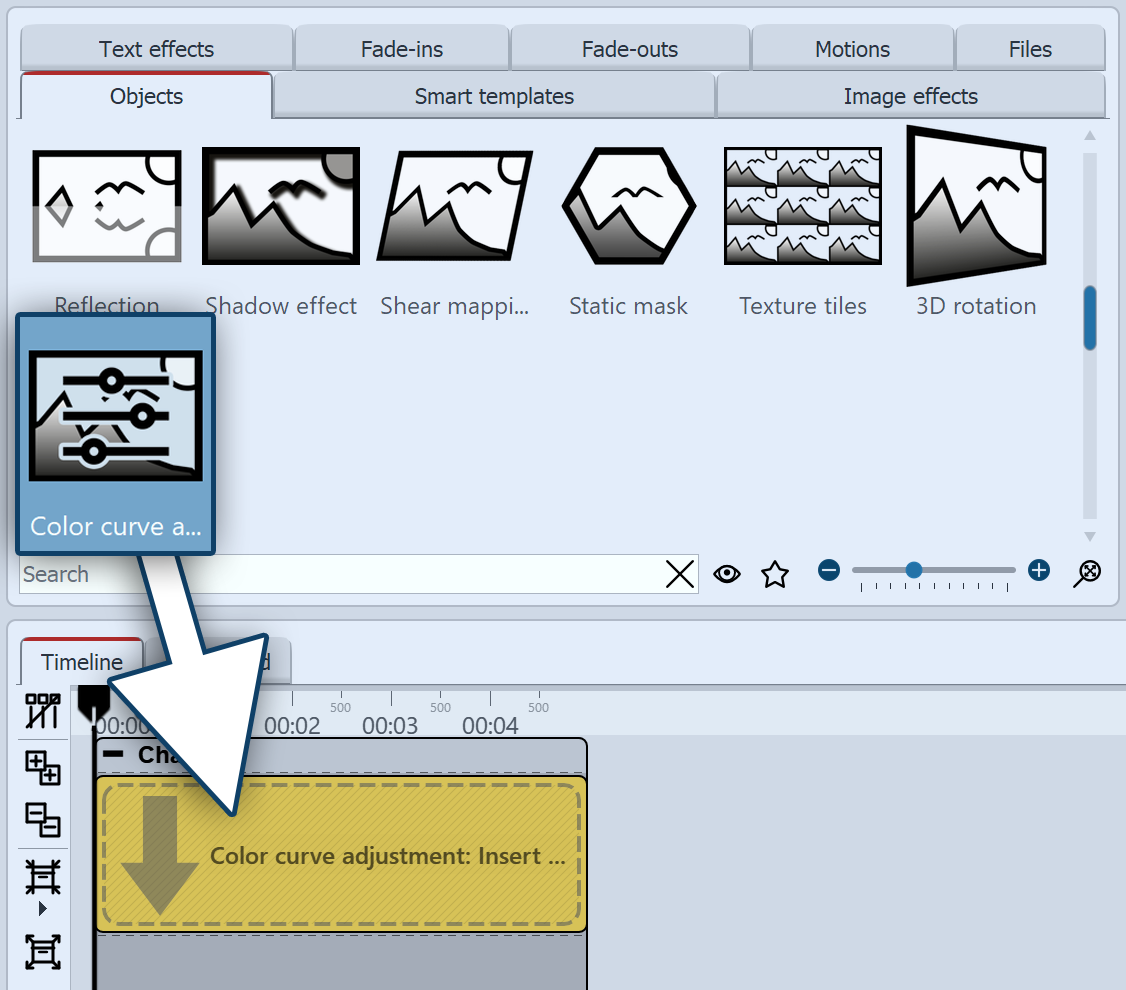

Adding Color curve adjustment

Adding Color curve adjustment

Drag the effect from the Toolbox onto the desired location on the Timeline.
Then drag an object into the effect.



2 Settings of the effect

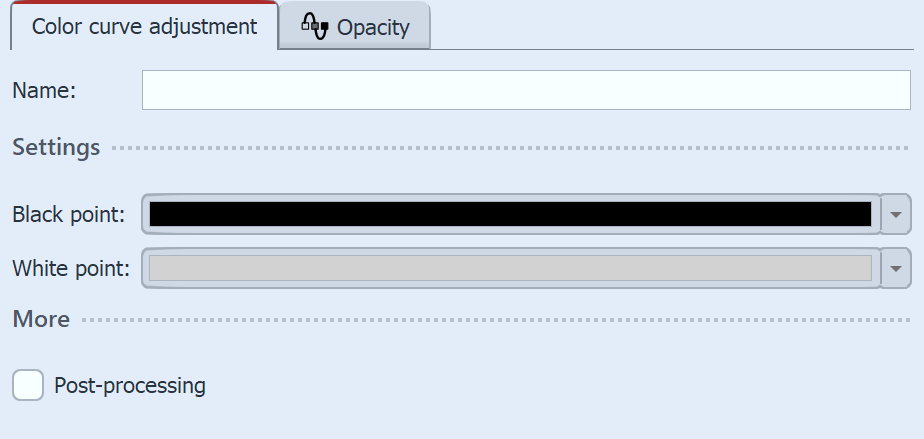

Settings for the Color curve adjustment

Settings for the Color curve adjustment

In the Properties window you can now set the black point and the white point. There are three possible applications:


Changing the contrast

Color matching

Combination of color matching and contrast changing


Depending on which hue you choose for the black and white point, the image will change. Using the eyedropper, which you can find in the Color selection dialog, you can select the darkest point in the image for the black point. Similarly, for the white point, you can choose the lightest part of the image.

If you experiment instead, you can also give the image or video a different hue.
