Program overview

Previous pageReturn to chapter overviewNext page

The structure of the surface

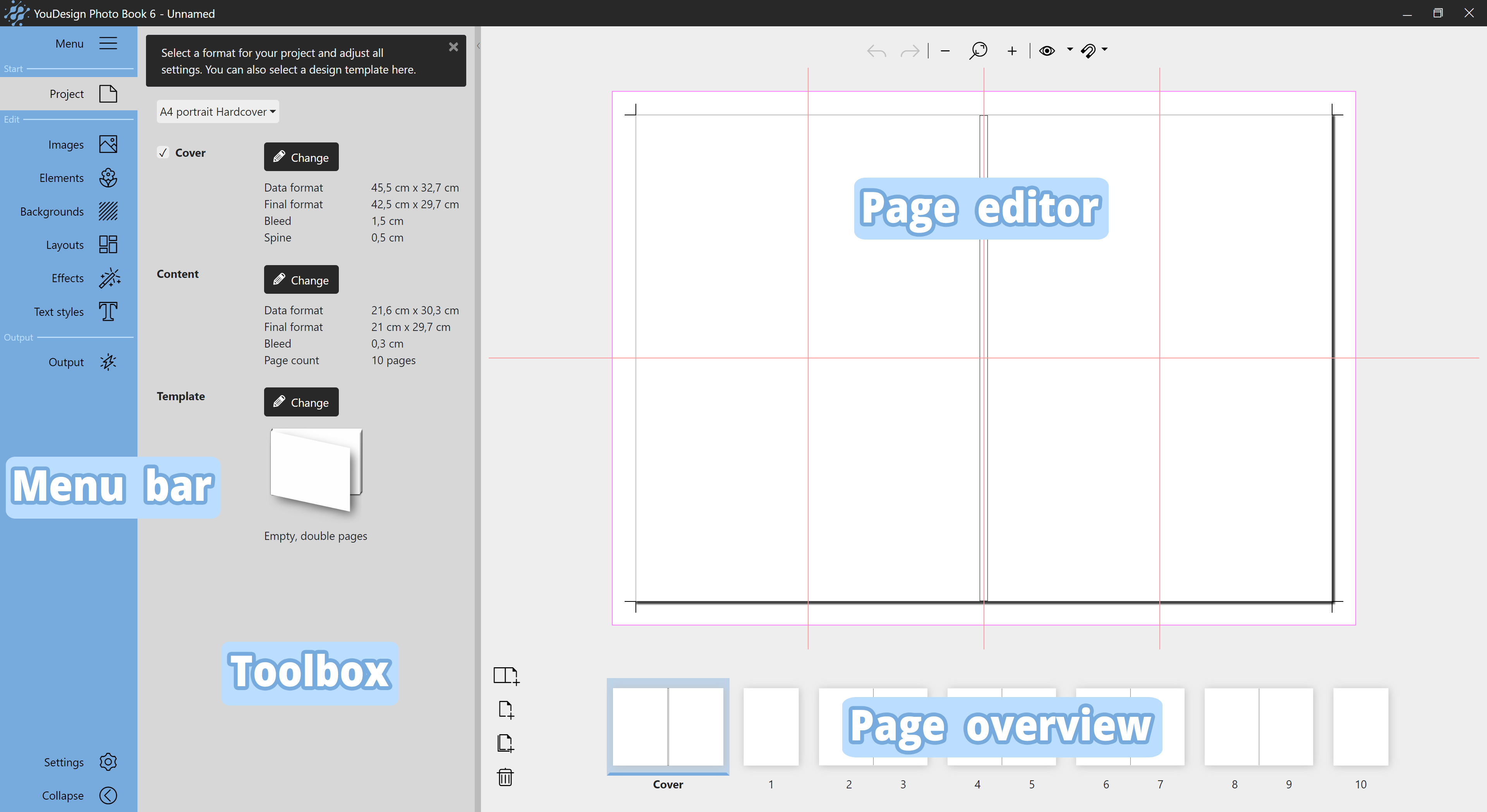

After starting the program you will see this view.

Program overview

Program overview

Use the colored Menu bar on the left edge to select your work step from the Start, Edit, Output areas.
Next to it is the Toolbox with all the tools available for the currently selected menu item.
On the right you will find the Page editor, the workspace, and below it the Page overview.

The Menu bar

YDPB_Btn_Menu

Create new project, Open project, Save project, Save project as, Archive project, Exit program
Call help, program info, search update, change license

YDPB_Btn_Project

Select template, customize template or make settings for own template

YDPB_Btn_Images

File browser, from which images are dragged to the page editor, and image tray, for bookmarking images

YDPB_Btn_Elements

Decorative elements for use in the Page editor

YDPB_Btn_Backgrounds

Full-page background designs for use in the Page editor

YDPB_Btn_Layouts

Image arrangement layouts for use in the Page editor

YDPB_Btn_Effects

Effects for photos, decorations and text elements for use in the Page editor

YDPB_Btn_TextStyles

Text objects for use in the Page editor

YDPB_Btn_Export

Project output

YDPB_Btn_Settings

Activate/deactivate language settings, hints and dialogs

YDPB_Btn_Collapse YDPB_Btn_Expand

Minimize/maximize the Menu bar

The Toolbox

In the Toolbox you will find the tools for creating your photo book. The detailed descriptions of the tools can be found in the following chapters.
For the tools Images, Elements, Backgrounds, Layouts, Effects, Text styles you will find a slider at the bottom of the Toolbox to change the zoom level of the Toolbox.
With Search and a keyword you can search the respectively opened Toolbox. Click on the crossed-out circle symbol to remove your search word. You will then be shown all the selection options again.

The Page editor

In the Page editor, you can see how images and text are arranged on the book pages. The Page editor is your workspace for placing objects.
Move images, backgrounds, decorations and texts to the desired position. Use the handle points on the objects to zoom in or out. Arrange your images using image layouts and apply image effects.

Btn_Undo

Undo last action (can be executed multiple times)

Btn_Redo

Restore last action

Btn_ZoomInOut

Reduce page view / Enlarge side view

Btn_ZoomFullSize

Zoom page view to full size

Btn_View_new

Activate/deactivate display of bleed, crop marks, center lines

Pro version Show/Hide Ruler, Show/Hide Custom auxilliary lines

Btn_Grid

Enable/disable snapping to centerlines, page margins, rotation grid, bleed, elements.

Pro version Enable/disable snapping for Custom auxilliary lines



Rulers

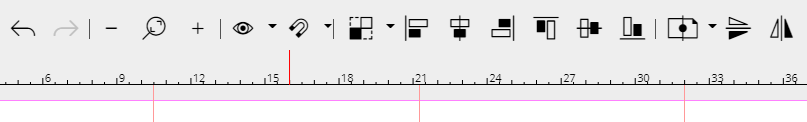

Toolbar with top ruler

Rulers Pro version

In the Pro version, the Page editor is bordered by rulers on the left and top. You can show/hide the rulers at the Grid item.

Custom auxilliary lines Pro version

To use your own auxilliary lines, drag an new auxilliary line from the ruler while holding down the left mouse button. Auxilliary lines can be dragged from the horizontal ruler as well as from the vertical ruler. The custom auxilliary lines are displayed in blue in the Page editor. Custom auxilliary lines can be moved with the mouse in the page editor. To do this, move the mouse over the auxilliary line until a black double arrow appears, then move it while holding down the left mouse button.

To remove a custom auxilliary line, click it with the right mouse button.

Tools for object alignment and mirroring Pro version

You can use the following tools to align objects on a page or spread.

Btn_Alignment Btn_AlignToPage Btn_AlignToLeftPage Btn_AlignToRightPage

Alignment: Align to selection / Align to side / Align to left side / Align to right side

Btn_AlignLeft Btn_AlignRight Btn_AlignTop Btn_AlignBottom

Align left / Align right / Align top / Align bottom

Btn_CenterHorizontally Btn_CenterVertically

Center horizontally / Center vertically

Btn_AxisCenterSelection Btn_AxisCenterPage Btn_AxisCenterLeftPage Btn_AxisCenterRightPage

Mirror axis: Center of the selection / Center of the page / Center of the left side / Center of the right side

Btn_MirrorVertically Btn_MirrorHorizontally

Mirror vertically / Mirror horizontally

You can find application examples for Change alignment and Mirror in chapter "Layouts"

Objects in the Page editor

Right-click on objects in the Page editor to find more functions.

Editor_Settings

Properties - changing properties of the element

Editor_Crop

Edit crop - crop image or change image crop

Editor_Cut

Cut - cuts out the selected element

Editor_Copy

Copy - copies the selected element

Editor_Paste

Paste - inserts an element from the clipboard

Editor_Delete

Delete - deletes the selected element

Editor_Placement

Placement - change the arrangement of the element

The properties of an object can also be opened by double-clicking on an element in the Page editor.

Page overview

In the lower Page overview, click on the individual pages or the book cover to edit them in the Page editor. With the icons on the left edge you can add or remove book pages.

Doppelseite hinzufügen

Inserts a new double page after the selected one.

Einzelseite hinzufügen

Inserts a new single page after the selected one.

Seite duplizieren

Duplicates the selected page and inserts it after the selected one. In the next step you can enter the number of copies.

Seite löschen

Deletes the selected pages.
