Dynamic mask

Previous pageReturn to chapter overviewNext page
Dynamic mask in the Toolbox

Dynamic mask

You can find the Dynamic mask effect in the Toolbox below the tab Objects in the section Live effects.

A mask defines the area of ​​your image that is visible or invisible in the presentation. This means that the mask can take any form and be of any size. It further means that a text, an image, videos, Flexi-Collages as well as a chapter can be a mask. The mask effect is dynamic. This means that the masked area can be animated and can thus change the flow of the presentation.

Example: Everything that is black and white can be a mask - also pictures in shades of gray are masks. The Dynamic mask effect ensures that the image, which is located in a track above the mask can be seen within the field, where the mask is white. The rest is covered by the mask.

symbol-video

How to simulate a "see-through" with the Dynamic mask effect, you will learn in our video "Blick durch das Fenster simulieren (Maske und Kamerafahrt)".

1 Insert the "Dynamic mask" effect  VIDEO VISION   STAGES

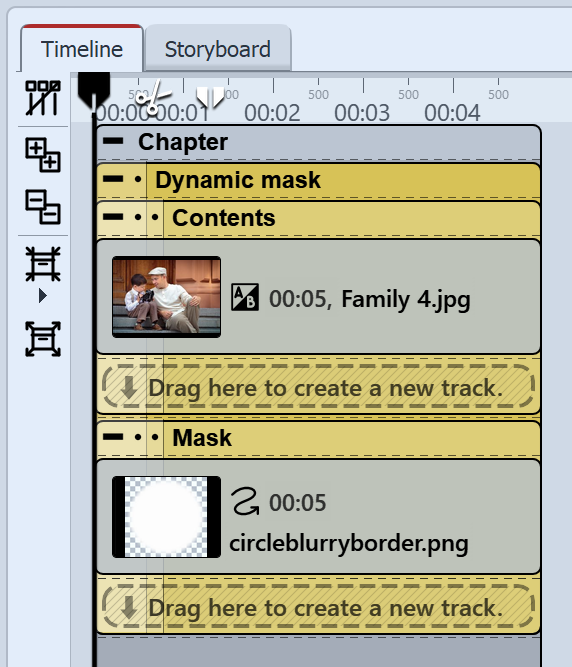

Dynamic mask effect in the timeline

Dynamic mask effect in the timeline

Drag the Dynamic mask effect from the Toolbox into the Timeline. Should the effect not have opened as per the example picture, you can click on the small plus, that is located in front of the lettering Dynamic mask effect in the Timeline.

Now you will see two fields:

Content: Here you add the objects on which you want the mask to have an effect.

Mask: You insert the mask here. For this you can use ready-made graphics from the Toolbox, which you can find under the tab Objects tab in the Masks section.

2 Placiea mask in the Layout designer

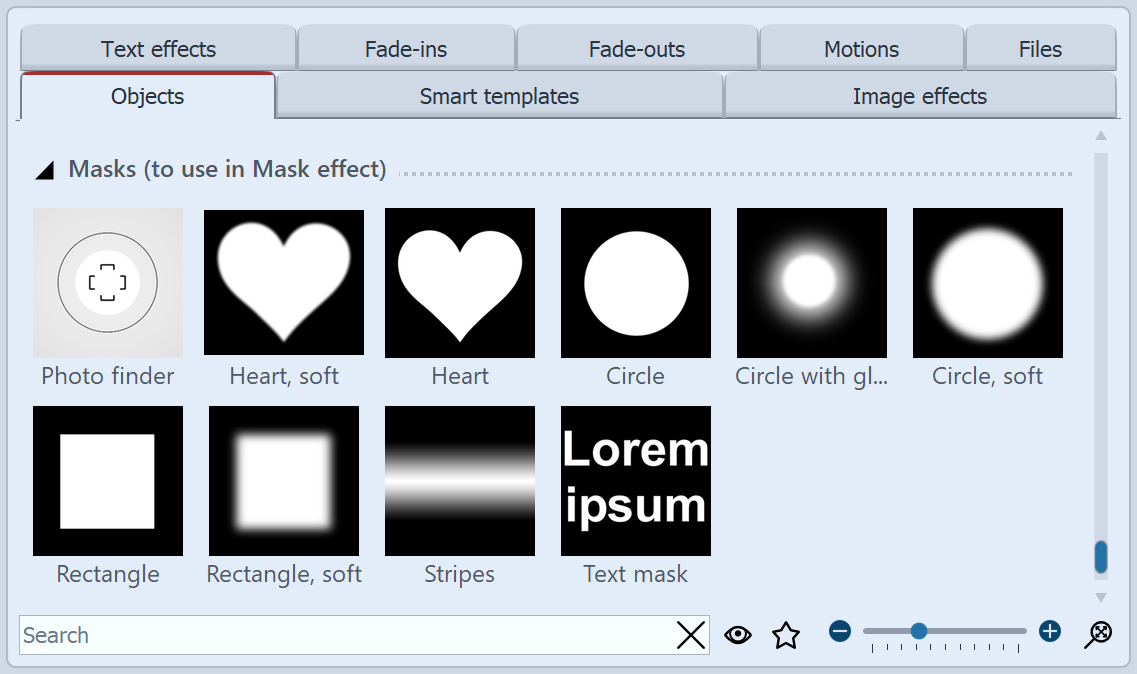

Masks from the toolbox

Masks from the toolbox

A mask has a white and a black area. The area which in the mask is white, leaves visible the object which you have inserted under Content.
The black (or also transparent) part of the mask hides the object that you have inserted under Content.

There are several display options, help you to place the Dynamic mask effect properly.

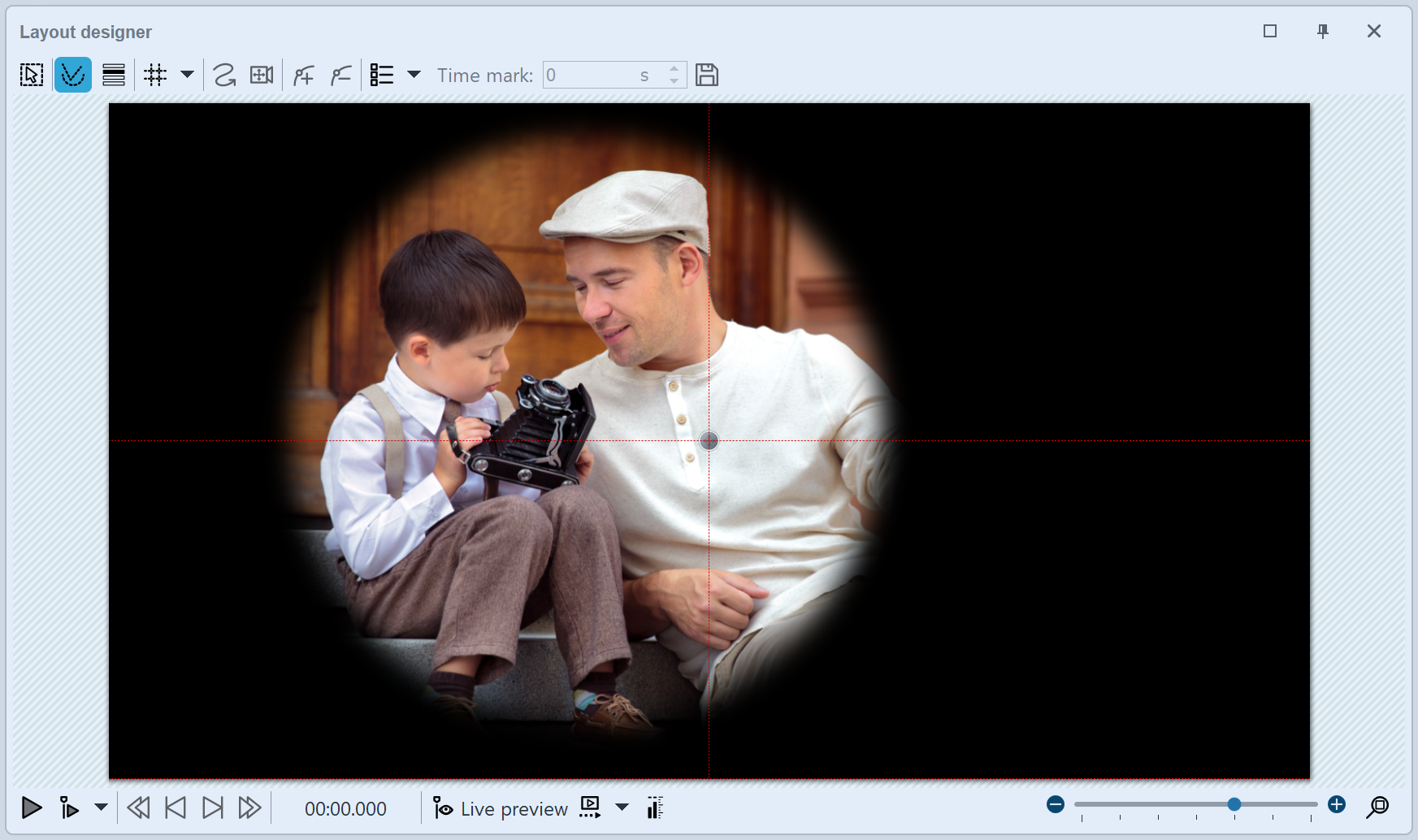

Yellow frame of the effect has been clicked on

Yellow frame of the effect has been clicked on

The yellow frame of the effect has been clicked on:
In the Layout designer will only display that content which the mask has let through.

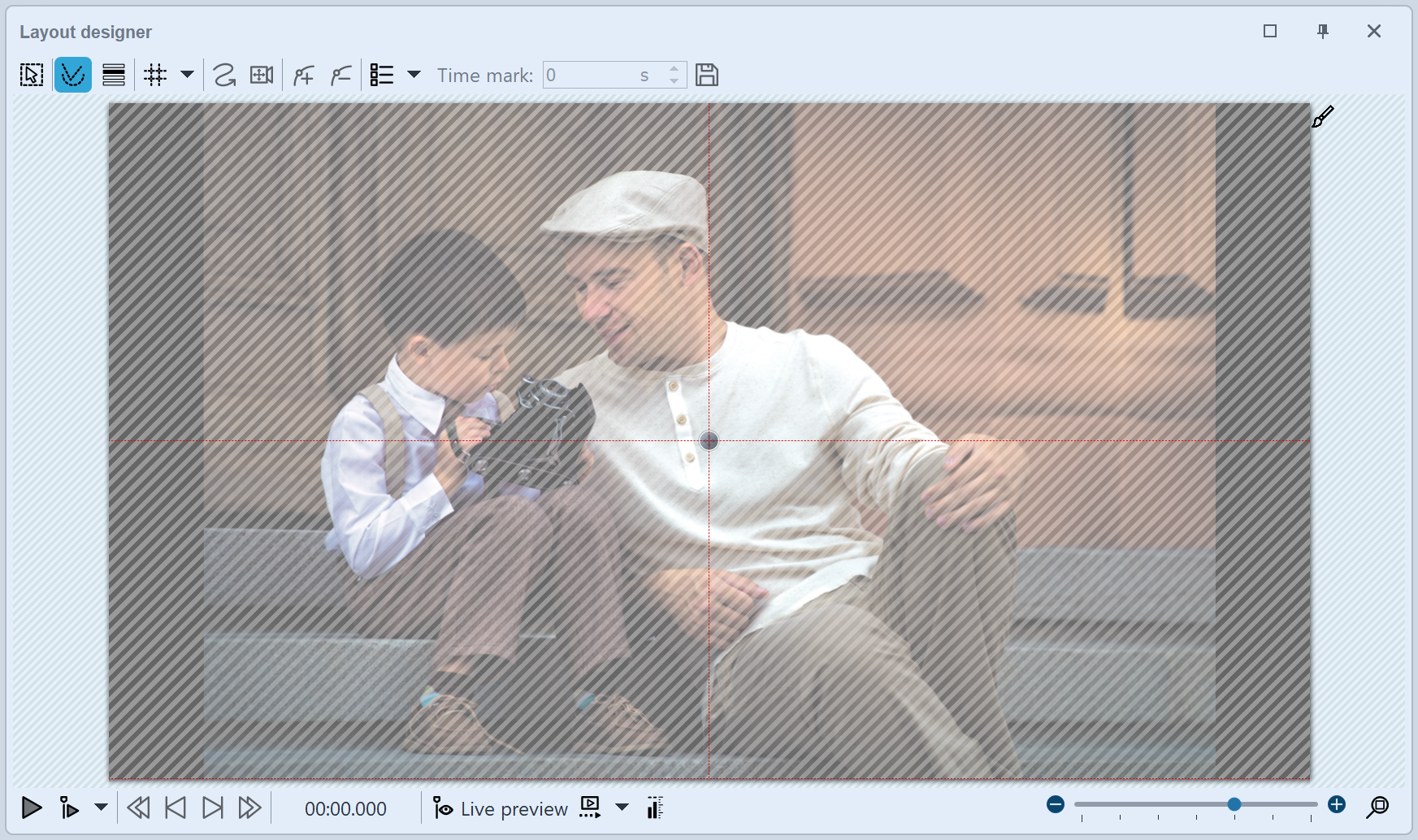

Content area of the effect has been clicked on

Content area of the effect has been clicked on

The content area has been clicked on:
The entire image is visible, but covered by cross-hatching.

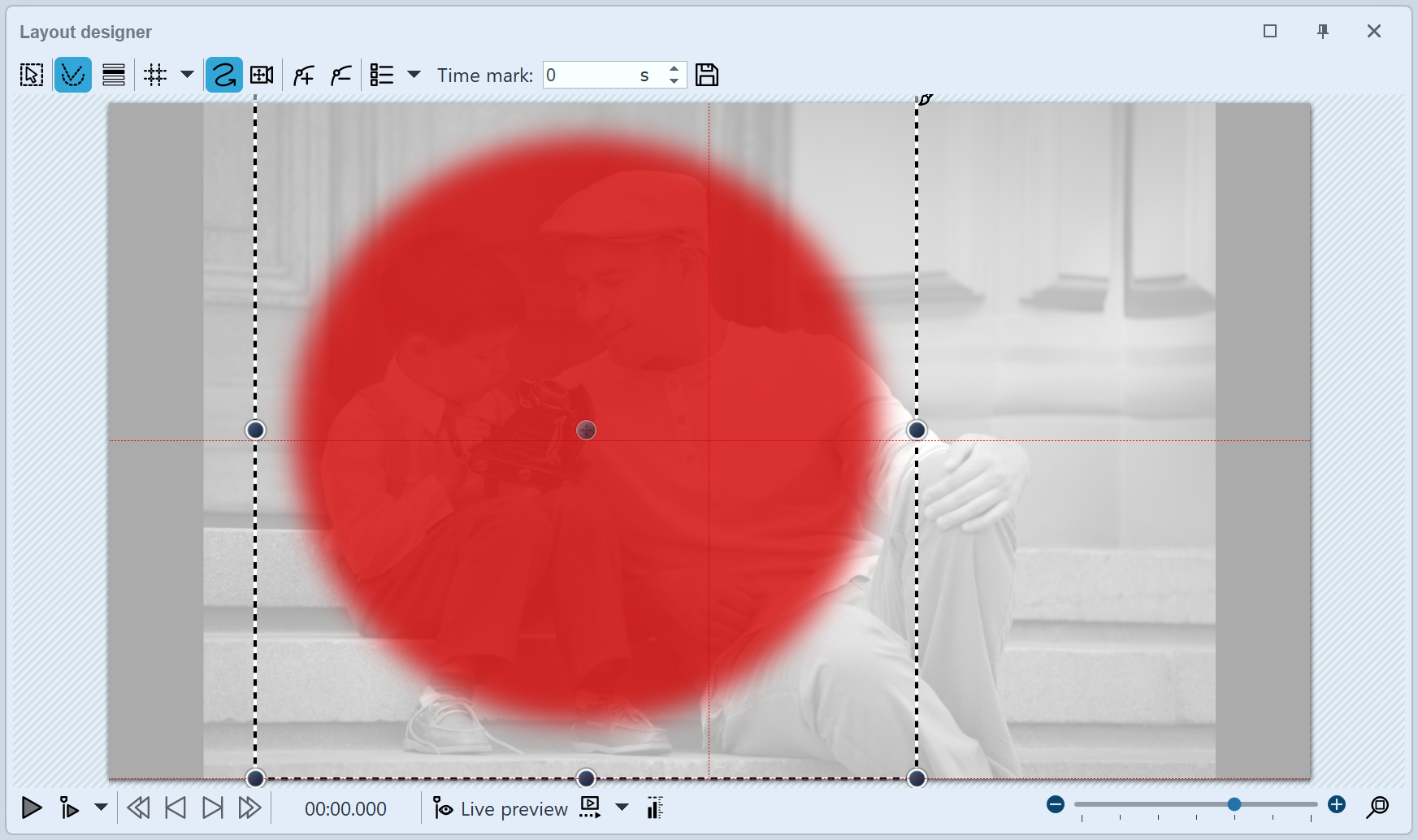

Mask area of the effect has been clicked on

Mask area of the effect has been clicked on

Clicking on the mask area:
The image appears pale and black and white. The area lying above the permeable section of the mask is shown in red.

3 Move the mask

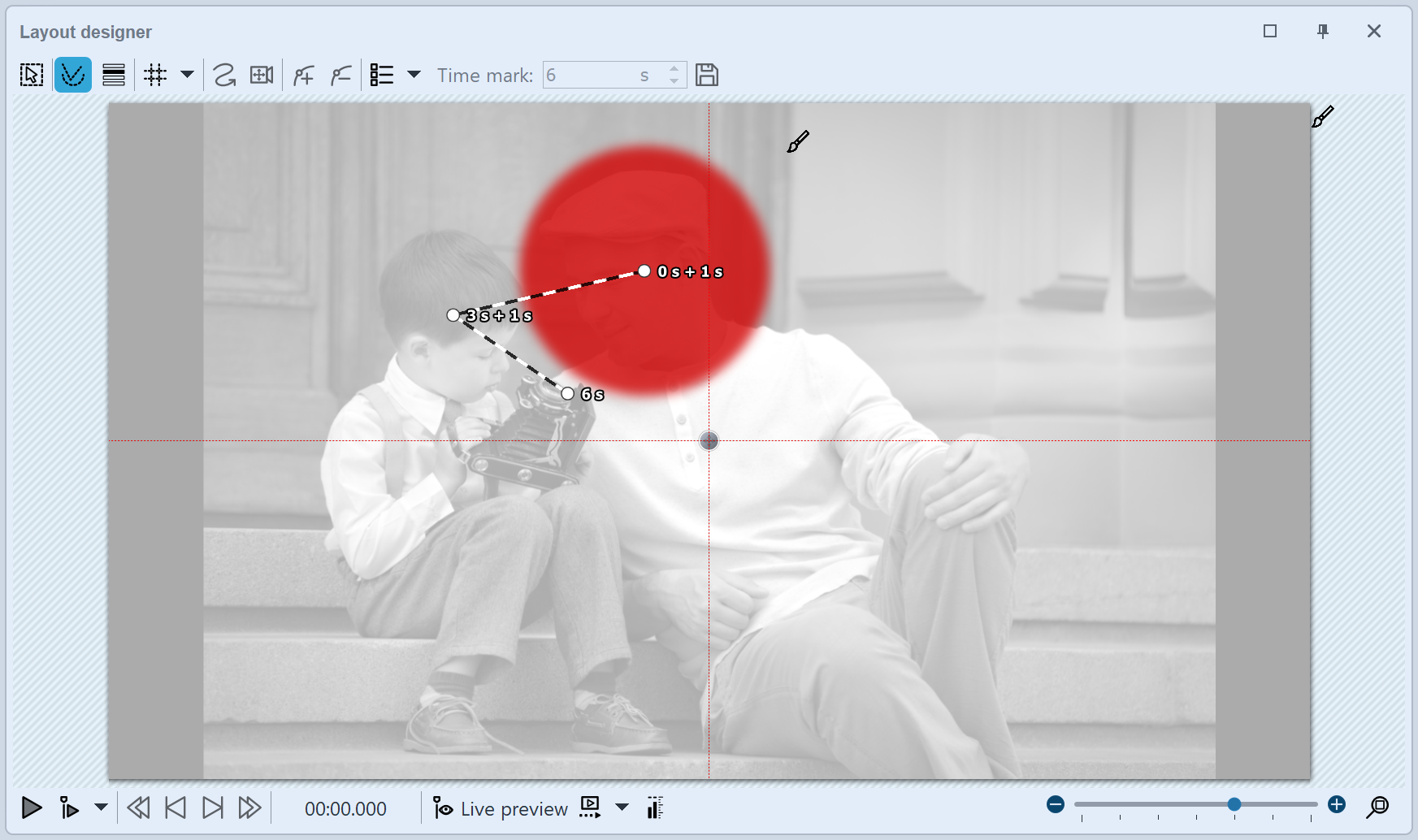

Mask receives motion path

Mask receives motion path

You can add, to each element of the Dynamic mask effect a motion path and a fading in or out, and camera panning can also be used. Select the image that you have inserted into the mask field. In the Layout designer you can now create a simple motion path for this purpose. For information on how to do this, refer to the chapter "Introduction to motion paths”.

You have just created your first Dynamic mask effect. You can look at the effect in the preview in the Layout designer. There are many more possibilities - in the next step you will learn about another of them.

4 Superimpose various images

Tipp

Under File / Open / Sample project you will find a finished project in which the Dynamic mask effect has been used on an Image object and on a Text object. Select the example "Dynamic mask".

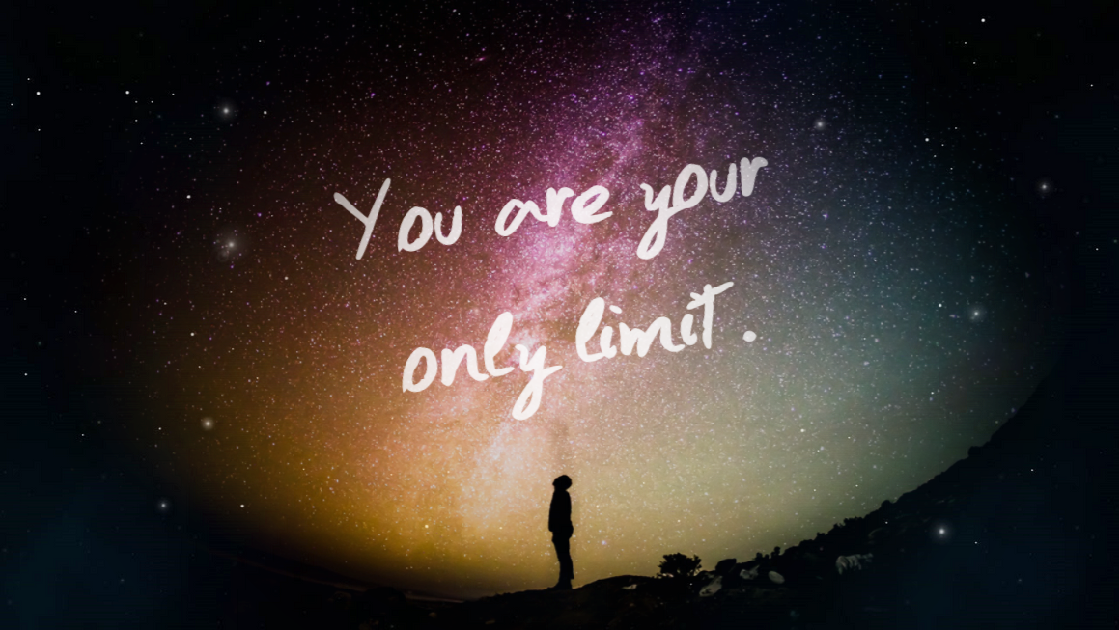

Superimposing a photo onto a background of outer space

Superimposing a photo of a person in front of the night sky onto a background of outer space

The Dynamic mask effect becomes interesting if you use it for superimposing multiple objects. The portion of the photos or videos (in the Content field), which is overlayed by the mask can be filled using other photos or videos. In the aforementioned example slideshow on the left you can see how the image was built up.

Drag a Chapter object from the Toolbox into the Timeline. In the chapter drag your preferred video or image object, and other objects can also be used. These objects serve as a background.

Now drag the Dynamic Mask effect below the image/video object . Fill it with content and a mask.

All objects, which are now to be displayed simultaneously, must have the same display duration. You can adjust this either via the properties window or dragging the border of the object using your mouse in the Timeline.

5 Settings of the effect

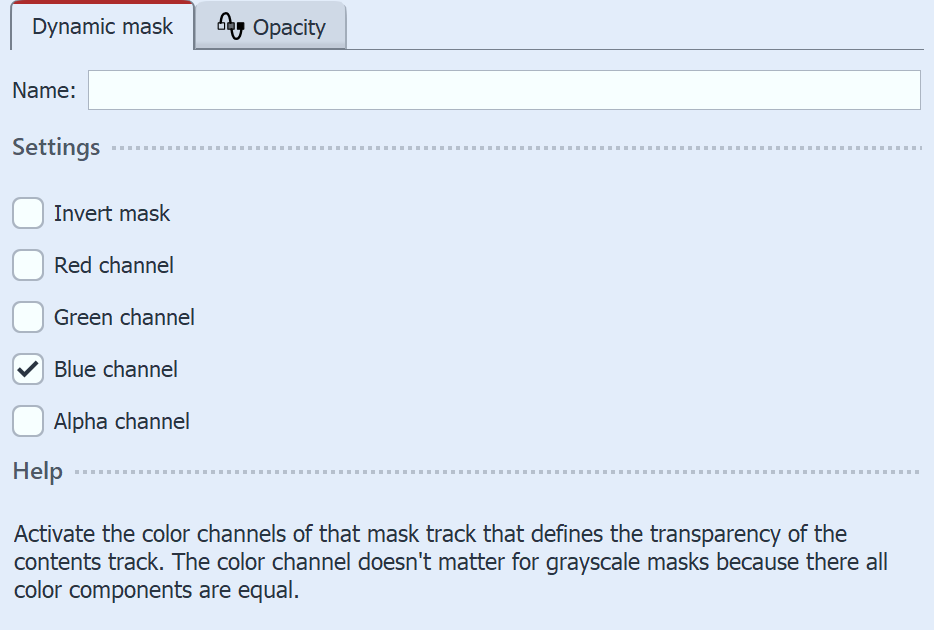

Settings for the Dynamic mask effect

Settings for the "Dynamic mask" effect

If the entire Dynamic mask effect is selected, find further setting possibilities in the Properties window.

Name

Enter a name here, so that you have a better overview later on

Rotating the mask

Inverting the effect of the mask so that visible areas become invisible and the other way round

Red, green, blue, and alpha channel

Masks do not have to consist of gray scale, but can also be colored. With the controls you influence the various channels.
